The fastest way to get your electrical drawing done is to use a set of pre-made blocks like these. Instructions on how to download and install these AutoCAD Electrical Blocks will be sent immediately after the order is placed. Once the symbols is inserted, it will take on the characteristics of your current layer settings. Lastly rotate to the desired position in your AutoCAD drawing and insert the symbol. Choose the symbol you would like to insert and click on “OK”. Next a dialog box appears showing all of the available symbols with a description in the left window. Simply choose an electrical category of symbols from the pull-down menu list.
From the list of installed programs, double-click 'AutoCAD Electrical.' When the setup window appears, click 'Add or Remove Features '. Every symbol is drawn to 1:1 scale on layer zero with “bylayer” attributes. From the Windows Start menu or Windows taskbar search, open 'Programs and Features'. Once loaded in AutoCAD or AutoCAD LT’s menu bar, “Electrical Library” will appear in the menu bar (if you using the Mac version a content palette will become available). The electrical block library’s user-friendly interface allows you to simply point and click to choose from a wide range of electrical symbols.

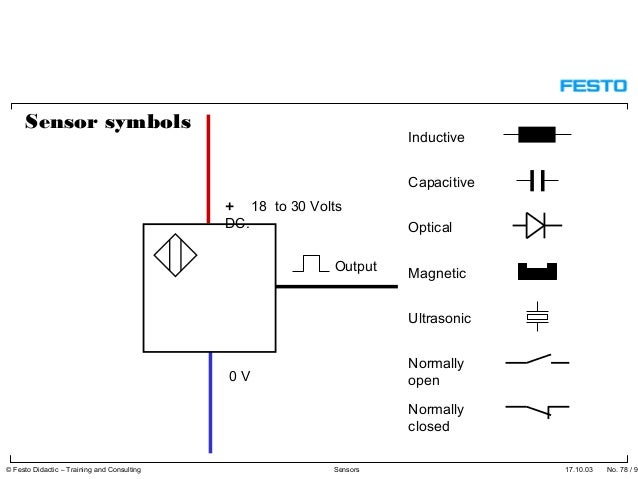

This library is guaranteed to save you hours of drawing time. There’s no need to browse through folders every time you need to insert a symbol. The electrical blocks can be easily loaded into AutoCAD or AutoCAD LT’s menu bar for quick access. This library works in both AutoCAD and AutoCAD LT. Simple load the library in AutoCAD and your done! Includes a 30 day money-back guarantee. The block library is also very easy to use, in fact there’s nothing to learn. Installs easily into AutoCAD, AutoCAD LT or AutoCAD MacĪutoCAD Electrical Blocks Completely Organized!.This popular AutoCAD Block library contains 165 electrical symbols and contains 165 symbols grouped in the following categories: Share your knowledge, ask questions, and explore popular AutoCAD Electrical topics. Contains 165 Electrical Symbols for AutoCAD or LT. JIC & NFPA Photoelectric Switch / Photoeye Sensor Symbols AutoCAD Electrical. Note: Both PC and Mac for AutoCAD version now available (see pulldown under buy button right side). The library is compact and fully compatible with both AutoCAD and AutoCAD LT versions 2006 through the latest AutoCAD release. Scroll down to see a complete preview of all the Electrical CAD blocks included in this library.These AutoCAD Electrical Blocks are easily accessed from a top pull-down menu. You will also find CAD Blocks for Reflected Ceiling Plans and a basic Lighting Schedule in AutoCAD. The ArchBlocks AutoCAD Electrical Library has electrical symbols for designing Lighting Plans and Electrical Plans that are required for CAD construction documents. AutoCAD Electrical Symbols Library Preview
